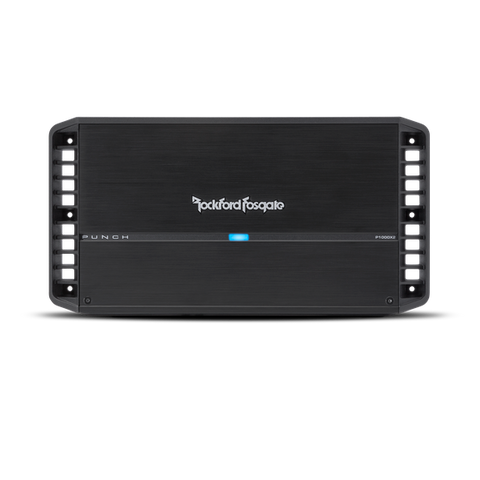

The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
FINAL SALES ITEM- Can not be returned for credit or refund.
-
High level input capable with Auto Turn-On circuit
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- On-board Punch EQ with +18dB boost @ 45Hz
- Cast aluminum heatsink
- Muted turn on
- Stealth top mounted control panel
- Short circuit protection
- Overcurrent protection
- 1 Year Warranty
Specifications:
Number of Channels 2
Total Power (Sum of Rated Power)
1000 Watts RMS Rated Power
(RMS Continuous Power)
300 Watts x 2 @ 4-Ohm
500 Watts x 2 @ 2-Ohm
1000 Watts x 1 @ 4-Ohm Bridged
Bridgeable Yes
Frequency Response 20Hz to 20kHz +/- 1.0dB
Input Sensitivity 150 mV - 12 V
Circuit Topology Class Class A/B
Efficiency (average) 69% @ 4-Ohm 64% @ 2-Ohm
Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0% 2-Ohm: <1.0%
Signal Input Hi/Low level: 1 RCA pair
Signal Output Low level: 1 RCA pair
Power Wire Gauge 4 AWG
Power Input Connector Captive C-Clamp
Speaker Wire Gauge 8 AWG to 18 AWG
Speaker Output Connector Captive C-Clamp
