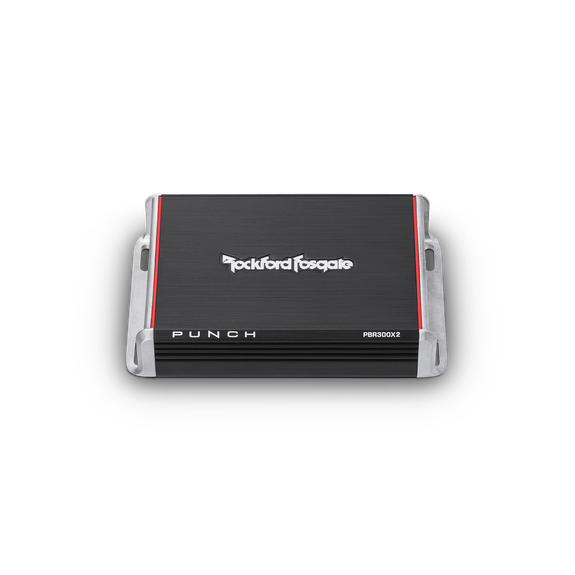

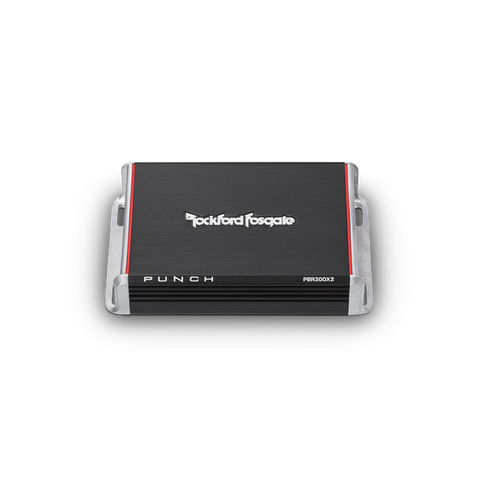

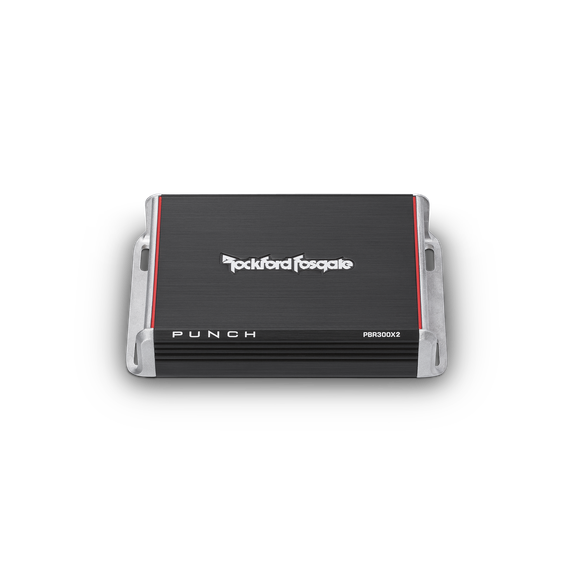

The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system.
- Ultra compact chassis
- High level inputs
- MOSFET output stage
- Variable 4-6 volt hi level DC offset voltage input turn-on control
- 12dB/octave Butterworth crossover
- 1 Year Warranty
Specifications:
Number of Channels 2
Total Power (Sum of Rated Power) 300 Watts
Rated Power (RMS Continuous Power) 100 Watts x 2 @ 4-Ohm
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
Bridgeable Yes
Frequency Response 20Hz - 20kHz +/-3dB
Input Sensitivity 150 mV - 11 V
Circuit Topology Class Class BR
Efficiency (average) 68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0% 2-Ohm: <1.0%

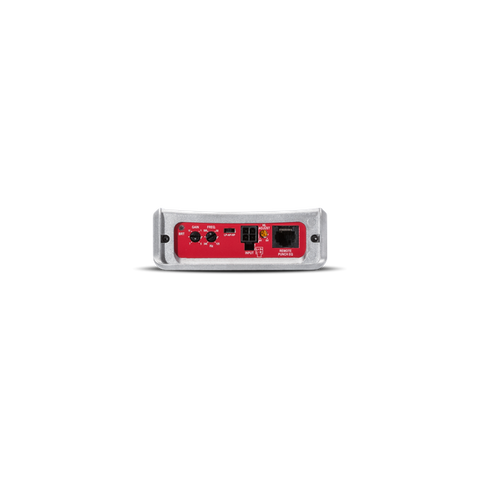

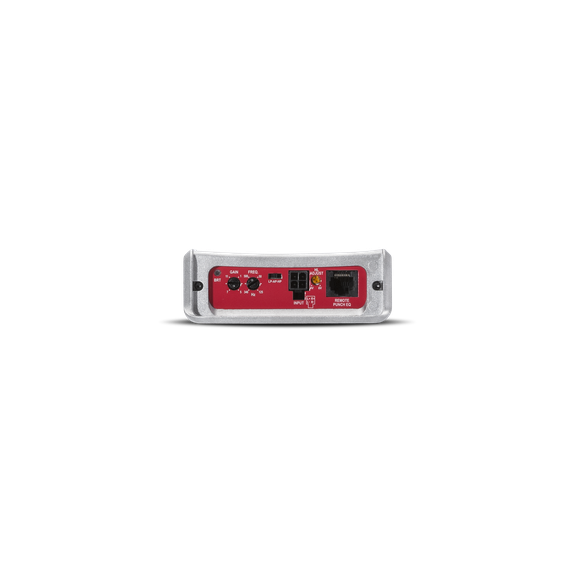

Signal Input High/Low Level Input: 4-Pin harness
Hi-Level Sensitivity: Variable DC offset sensitivity
Visual Indicators Power/Protect, BRT (Boost)
Power Wire Gauge 10 AWG

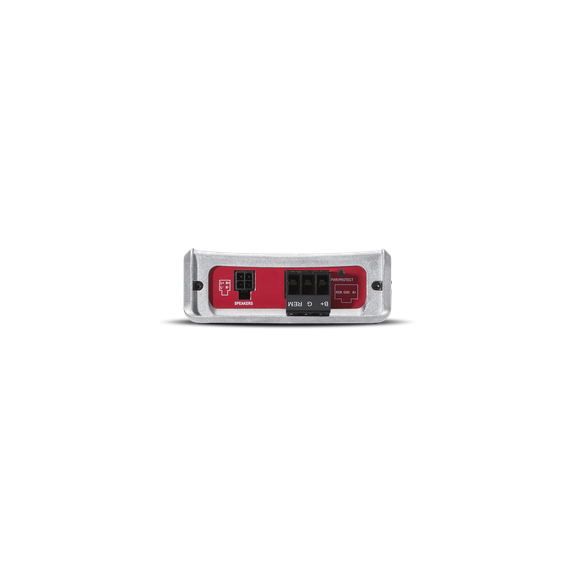

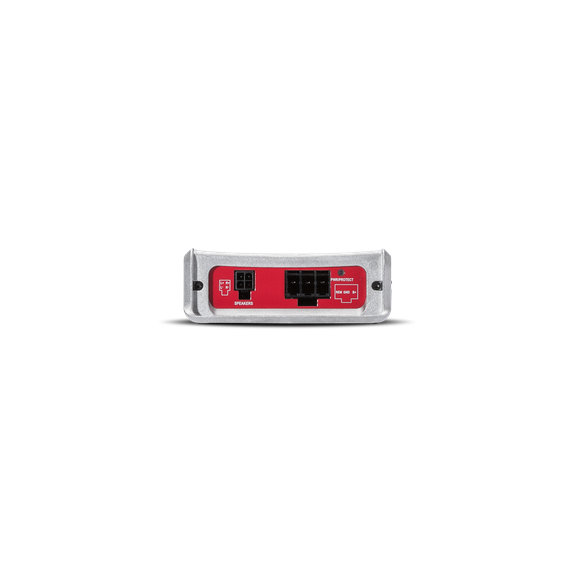

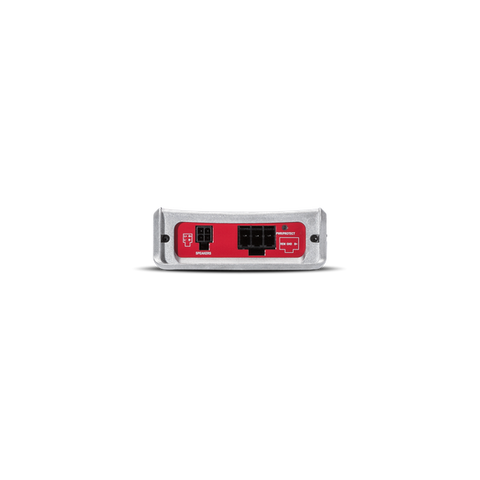

Power Input Connector Detachable Compression Terminal
Speaker Wire Gauge 16 AWG
Speaker Output Connector 4-Pin Harness
